PH/PJ 7.5-25 Ton Split System Heat Pumps

11-11.6 EER (11.4-12.4 IEER) (PC) 11-11.6 (11.4-12.4 IEER) (PD)

Lightweight, durable Luxaire® PH/PJ Split-system Units provide flexibility and easy installation for commercial applications.

  • Features Smart Equipment
  • Condenser coils constructed from microchannel aluminum tubing
  • 5-year Limited Compressor Warranty and 1-year Parts Limited Warranty
Back to Top

Reliable Performance in a Compact Design

Luxaire® PH/PJ Split-system Heat Pump Units deliver the performance you need for reliable operation in today's demanding commercial environments. Compact designs, clean styling and quiet operation make these units an ideal fit for your application. With a durable build, condenser coils made with Microchannel aluminum tubing, aluminum fins and vinyl-coated fan guards, these split units resist rust and deliver long-lasting, efficient operation.
Reliable Performance in a Compact Design

Features

  • Meets EPACT 2005 and exceeds ASHRAE 90.1-1999 efficiency standards
  • Inherently protected condenser fan motors
  • Five-minute, anti-short cycle timer and minimum compressor run time
  • Factory-installed disconnects, convenience outlet and technical coil option
  • Durable build with condenser coils constructed with microchannel aluminum tubing and aluminum fins
  • Self-contained, high and low pressure controls
  • Class 2, 24-volt, thermostat control circuit
  • Compressor staging for capacity reduction provides more economical operation and even temperature levels within the conditioned space
  • Includes filter drier ready for field installation and is Smart Equipment enabled
  • 2-pipe and 4-pipe configurations
  • Standard operation to 40°F; factory or field-installed low-ambient VFD control to 0°F
  • Scroll compressors provide both high efficiency and reliability
  • Crankcase heaters that will be de-energized when the compressor is operating
  • Solid state or internal line break compressor motor protection
  • Copper stub-outs are factory-mounted on the suction and liquid lines to simplify field piping connections

Benefits

Easy Installation
EASY INSTALLATION

These compact units install easily on rooftops and at ground level thanks to a lightweight design and simplified piping connections.

Reliable Performance
RELIABLE PERFORMANCE

Built-in protections as well as five-minute, anti-short cycle timer and minimum compressor run time provide greater peace of mind.

Flexibility
FLEXIBILITY

Choose two-pipe (PH) or four-pipe (PJ) configurations for on-site flexibility and factory- or field-installed low ambient VFD control to 0˚F.

Remote Monitoring With Smart Equipment

Every PH/PJ 7.5-25 Ton Split System Heat Pumps come standard with next-generation Smart Equipment – a digital control system for easier system setup, optimization and maintenance. Optional remote data access is available via our Mobile Access Port (MAP), and our Fault Detection and Diagnostics (FDD) system is available to further reduce service steps. Benefits include:

  • Easy-to-read LCD display
  • 24/7 real-time reporting
  • On-board USB port
  • Independent safety monitoring
  • Building automation compatible
Learn About Smart Equipment

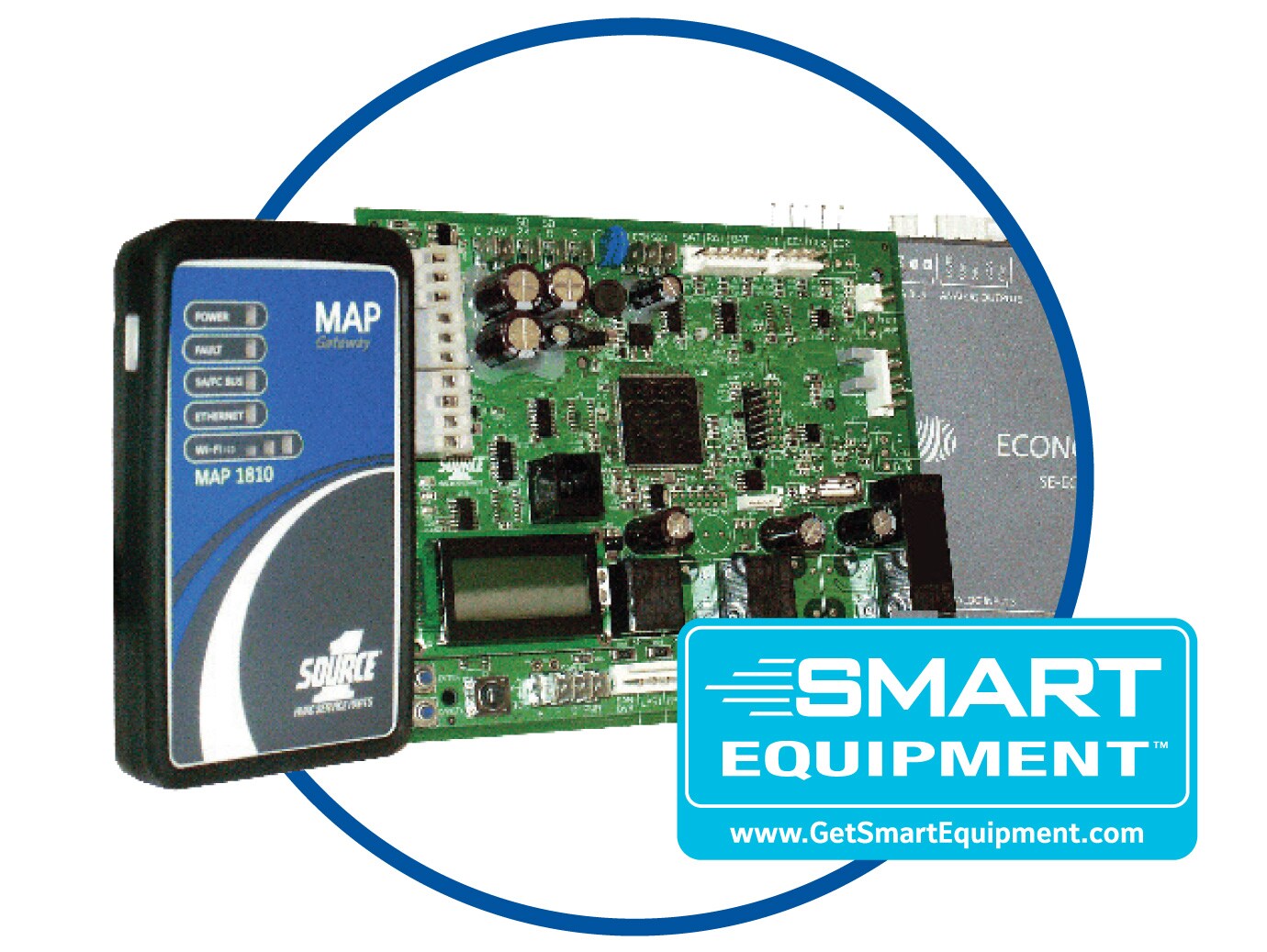

Smart Equipment control board and components for YORK packaged rooftop unit
